Discover our new Weidos Devices

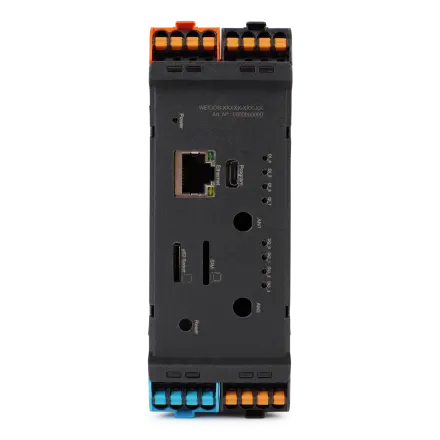

Weidos Devices

Technical Specifications

• Dimensions and Weight

  Height x Width x Length (mm)

  • 114 x 46 x 127

  Height x Width x Length (inches)

  • 4,488 x 1,811 x 5

  Weight

  • <350 gr

• CPU

  CPU Type

  • Arduino MKR1010 (ARM Cortex - M0 32-bit SAMD21)
  • Espressif ESP32-WROOM-32UE

  Clock Speed

  • MKR1010: 32.768 kHz (RTC), 48 MHz (Processor)
  • ESP32: 40 MHz (Processor)q

  Memory

  • MKR1010 - SAMD21: 256kB Flash, 32kB SRAM
  • ESP32: 448kB ROM, 520kB SRAM

  Cryptographic Chipset

  • MKR1010: ATECC508
  • ESP32: ATECC608

  EEPROM

  • 512 kB

• Environmental Conditions

  Operating temperature

  • 0 to 60 ºC

  Storage temperature

  • -20 to 60 ºC

  Operating environment

  • With no corrosive gas

  Operating humidity

  • 10 to 90% (non-condensation)

• Connection Data

  Wire Connection Cross Section AWG, min - max

  • AWG 24 - AWG 14

  Solid, min H05(07) V-U, min – max

  • 0,2 mm2 - 1,5 mm2

  Stranded, min H07 V-R, min – max

  • 0,2 mm2 - 2,5 mm2

  Flexible, min H05(07) V-K, min – max

  • 0,2 mm2 - 2,5 mm2

  w. plastic collar ferrule, DIN 46228 pt.4, min - max

  • 0,25 mm2 - 2,5 mm2

  Ethernet Interface

  • RJ45 Female Socket

  USB (Programming Interface)

  • Micro-USB Type B Female Socket

  External antenna connections

  • SMA Female

  Other

  • μSD Interface, Reset Button, Real Time Clock (CR1220 Battery not included)

• Digital Inputs

  Input Voltage, High

  • > 5 V DC (max. 24 V DC)

  Input Voltage, Low

  • < 3,3 V DC

  Imin.

  • 2 mA (at 5 V DC input) -12mA (at 24 V DC input)

  Number of Digital Inputs

  • 4 + 4* (Use Analogue Inputs as Digital Inputs)

  Reverse Polarity Protection

  • Yes

  Galvanic Isolation

  • Yes

  Status Led

  • Yes (only on 4 pure Digital Inputs, not Analog ones)

• Analog Inputs

  Input Range

  • 0 to 10 V DC

  Type of Inputs

  • Referenced Single Ended (all analog inputs share the same common reference on the device)

  Input Impedance

  • 39 kΩ

  Number of analogue inputs

  • 4

  Digital Input usage

  • Analog Inputs can be used as digital Input Signals (max. 24 V DC)

  Resolution ADC

  • 12 bits maximum

• Digital Outputs

  Output Voltage, High

  • Vin -1,0V

  Input Voltage, Low

  • GND (Supply Ground)

  Imax

  • 70 mA

  Protection

  • Diode

  Number of Digital Outputs

  • 4

  Galvanic Isolation

  • Yes

  Status Led

  • Yes

• Analog Outputs

  Output Range

  • 0 to 10 V DC

  Output Reference

  • Referenced Single Ended (analog output share the same common reference on the device)

  Imax

  • 10 mA

  Number of Analog Outputs

  • 1

  Resolution DAC

  • 10 bits maximum

• Multifunction Pins

  Voltage Operation

  • 3,3 V / 5 V directly connected to Micro-controller pins

  Voltage selection

  • Configurable via DIP switches

  Signal functions

  • Digital Input, Digital Output, Interrupts, PWM

  Imax (when configured as Output)

  • <7 mA

• Voltage Out Pins

  5 V pin

  • 5 V DC for sensor Power Supply (1 A max.)

  3.3 V pin

  • 3.3 V DC for sensor Power Supply (300 mA max.)

  GND pins

  • Common reference in all GND pins (Vin-)

• Communication Interfaces

  External Buses Available

  • Ethernet, I2C, SPI, RS485 half-duplex or UART (Configurable via DIP switches)

  Wireless communications

  • Bluetooth and Wi-Fi

• Power Supply

  Voltage Range (Vin)

  • 11,4V DC to 25,4 V DC

  Max Power

  • 30 W

  Insulation Resistance

  • 20 MΩ min. at 500 V DC between AC terminals and protective ground terminals

  Dielectric strength

  • 2.300 V AC at 50/60 Hz for one minute with a leakage current of 10 mA max. between all the external AC terminals and the protective ground terminal.

  Power supply holding time

  • 2 ms min.

• Directives

  RoHS

  • EN 50581

  LVD

  • EN 61010-1, EN 61010-2-201

  EMC

  • IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4

  RED

  • EN 301 489-1, EN 301 489-52, EN 301 489-3, EN 301 489-17, EN 300 328, ETSI EN 300 220-1, ETSI EN 300 220-2, EN 301 908-1, EN 301 908-2, EN 301 908-13, EN 301 511

  Safety

  • IEC62311

• Marking

  Marking

  • CE
